Custom Resistance Value Quick Response Temperature Sensors For Boiler

Name: Custom Resistance Value Quick Response Temperature Sensors For Boiler
Brand: Jingpu Brand
Price: 0.1 USD

Custom Resistance Value Quick Response Temperature Sensors For Boiler Manufactures

Brand Name : Jingpu Brand

Model Number : MFP-3G

Certification : CE,ROHS,ISO

Place of Origin : Hefei, Anhui, China

MOQ : 500

Price : USD 0.1-5 /PCS

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Million per Year

Delivery Time : 2-7days

Packaging Details : Carton packing

Way to install : Inserting

Sensing way : Resistence

Output signal type : Analog Type

Material : Epoxy and Metal

Measuring the dielectric : Temperature

IP code : IP64

Transport package : Carton Packing

Appearance : Black

Warranty : 2 years

After-sale service : Quality Assurance

Customization : Yes

Operating Temperature : /

Resistence Value : Custom

B Value : Custom

Shipping : Shipping, Air, or Express

Wire : 24AWG/1C OD3.1 Shielded round sheath wire

Contact Now

Quick Response Temperature Sensors For Boiler And Small Household Appliances

Brief Instruction (Product Description):

This product is generally used in electric kettles and other small household appliances. The probe is stainless steel and the wire is UL4413 26AWG XLPE 150℃ irradiated line. The resistance parameter is generally 50KΩ,B25/50=3950K (also can be customized according to customer requirements) use epoxy resin packaging, wire tail can be equipped with the corresponding connector according to customer requirements(PH-2Y).

Features:

Quick response

Comply for RoHS standard

Operating temperature range: -40℃~125℃

Easy to install

Stainless steel probe

Application:

Electric kettles, water heaters and other small household appliances

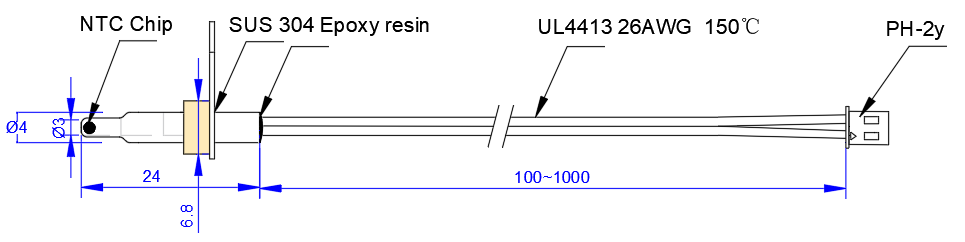

Structure and Dimensions:(unit:mm)

Custom Resistance Value Quick Response Temperature Sensors For Boiler

Special electrical appliance, quality assurance
Exquisite workmanship, brand trust, exquisite products
Hefei Jingpu Sensor Technology Co., LTD. NTC components, meet various engineering requirements and specifications
