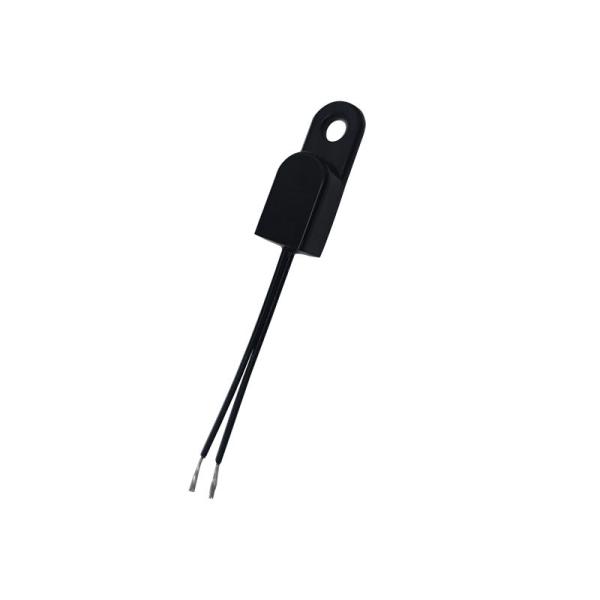

Temperature Sensor Probe High Accuracy High Voltage Resistant Ntc Thermistor

  • 1
  • 2

Brand Name : Jingpu Brand

Model Number : MFP

Certification : CE,ROHS,ISO13485/9001

Place of Origin : Hefei, Anhui, China

MOQ : 1000

Price : USD 0.6-2 /PCS

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Million per Year

Delivery Time : 2-7days

Packaging Details : Carton packing

Way to install : Inserting

Sensing way : Resistence

Output signal type : Analog Type

Material : PVC Wire

Measuring the dielectric : Temperature

IP code : IP64

Transport package : Carton Packing

Appearance : Black

Warranty : 12~24 Months

After-sale service : Quality Assurance

Customization : Yes

Operating Temperature : -20℃~80℃

Resistence Value : Custom

B Value : Custom

Shipping : Shipping, Air, or Express

Wire : PVC/XPLE/FEP/PTFE

Contact Now

Temperature Sensor Probe High Accuracy High Voltage Resistant Ntc Thermistor

Brief Instruction:

High voltage surface temperature measurement NTC temperature sensor is widely used in transformer cabinet, high voltage cabinet and other electrical cabinets, can withstand AC5000V high voltage insulation.

Features:

Comply for ROHS standard

PVC insulated lead wires series

Operating temperature range: -20℃~80℃

Easy installation

Resistant to high voltage

Application:

Substation ark

High voltage

Electric cabinet

Appearance requirements:
1: Inner hole of ring terminal: 3.2MM,4MM,5MM,6MM,8MM(can be customized according to customer requirements)
2: Line length: customized according to customer requirements
3: Wire :PVC wire and Teflon wire (customized according to customer requirements)
4: Wire color: black, white, red, yellow, green (can be customized according to customer requirements)
5: Thermistor parameters: customized according to customer requirements

Structure and Dimensions:

Temperature Sensor Probe High Accuracy High Voltage Resistant Ntc Thermistor

Electrical specification:

Rec. at 25℃(kΩ) Beta value (In air)Pmax(mW) δ(mW/℃) thermal time constant τ(sec.) Operating Temperature Range TL-TH(℃) Total length
L(mm)
1 B25/85=3435 Approx.60 / / -40℃~125℃ 100~5000
1.5 B25/50=3850
1.5 B25/50=3935
2 B25/85=3550
2 B25/85=3935
2.08 B25/85=3580
2.2 B25/50=3935
3 B25/50=3950
5 B25/50=3470
5 B25/50=3950
8 B25/100=3988
10 B25/85=3435
10 B25/50=3470
10 B25/50=3935
10 B25/50=3950
20 B25/50=3950
47 B25/50=3950
50 B25/50=3950
50 B25/50=4200
100 B25/50=4200
200 B25/50=4200
500 B25/50=4450
1000 B25/85=4600

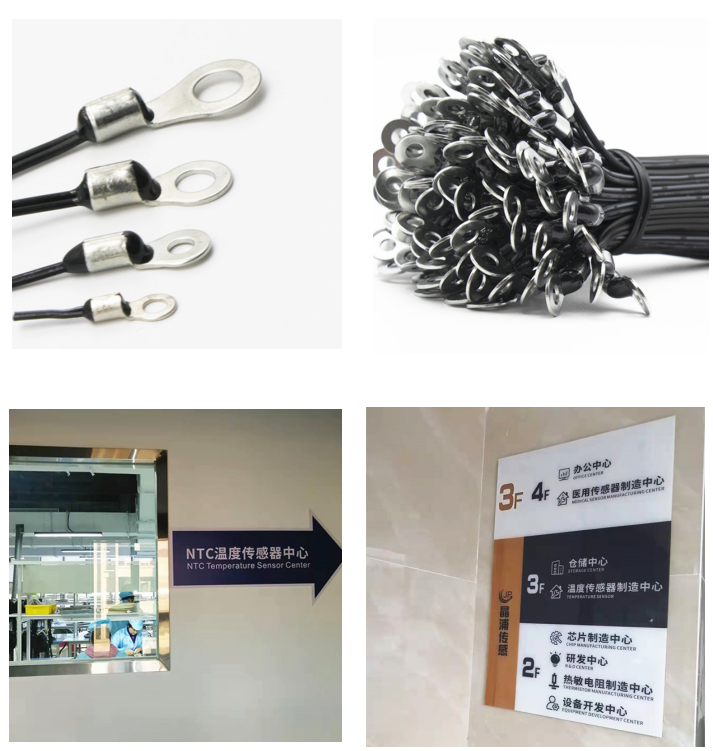

Product picture:

Temperature Sensor Probe High Accuracy High Voltage Resistant Ntc Thermistor
