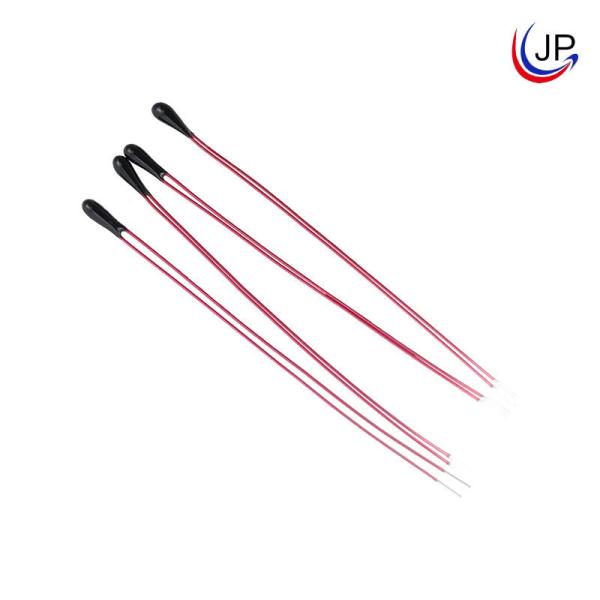

Enamelled Wire NTC Epoxy Thermistor 2500K To 4500K

Name: Enamelled Wire NTC Epoxy Thermistor 2500K To 4500K
Brand: JINGPU SENSOR
Price: 1 USD

Enamelled Wire NTC Epoxy Thermistor 2500K To 4500K Manufactures

Brand Name : JINGPU SENSOR

Model Number : MF5A-4

Certification : ISO9001, RoHS

Place of Origin : Anhui, China

MOQ : 500 Pieces

Price : To be negotiated

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Million per Year

Delivery Time : 2 Weeks

Packaging Details : Standard Packaging

Resistance : 0.3kΩ to 2000kΩ

B value : 2500K to 4500K

Operating temperature range : -40℃~125℃

Chip : NTC Chip

Encapsulation : Epoxy resin

Custom : Available

Contact Now

Enamelled Wire NTC Epoxy Thermistor 2500K To 4500K

Product Description:

Enamelled wire epoxy resin NTC thermistor, its lead is enamelled wire, the diameter of the lead is φ0.3mm, φ0.16mm. The optional resistance value range is from 0.3kΩ to 2000kΩ, and the beta value range is from 2500K to 4500K.

Features:

Comply with RoHS standard

miniature designed

good interchangeable

Operating temperature range: -40℃~125℃

Low-cost, solid-state temperature sensor

Suitable for temperature measurement, control and compensation

The size of epoxy coating is small

Lead wire is insulated

Application:

• home appliances such as refrigerator, dryer, HVAC, etc

• Automotive parts

• Medical equipment

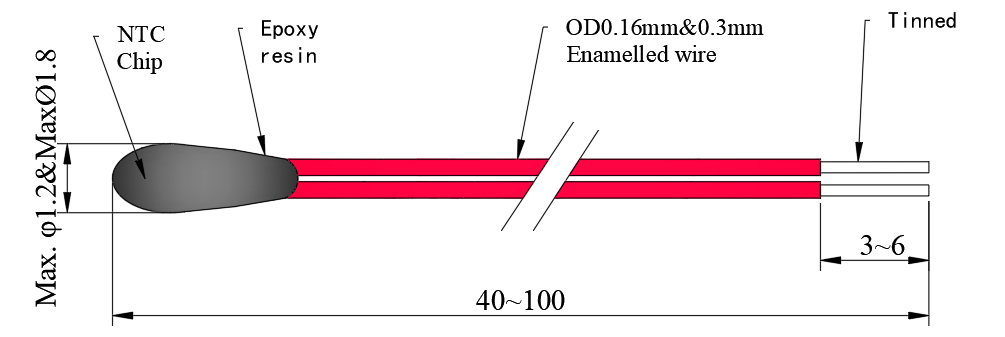

Structure and Dimensions:(unit: mm)

Enamelled Wire NTC Epoxy Thermistor 2500K To 4500K

Electrical Specification:

Rec. at 25℃(kΩ)	Beta value	(In air) Pmax(mW)	δ(mW/℃)	Thermal time constant τ(sec.)	Operating Temperature Range TL-TH(℃)	Total length L(mm)
1	B25/85=3435	Approx.60	Max.3.0	Max.20	-40℃~125℃	8~100
1.5	B25/50=3850
1.5	B25/50=3935
2	B25/85=3550
2	B25/85=3935
2.08	B25/85=3580
2.2	B25/50=3935
3	B25/50=3950
5	B25/50=3470
5	B25/50=3950
8	B25/100=3988
10	B25/85=3435
10	B25/50=3470
10	B25/50=3935
10	B25/50=3950
20	B25/50=3950
47	B25/50=3950
50	B25/50=3950
50	B25/50=4200
100	B25/50=4200
200	B25/50=4200
500	B25/50=4450
1000	B25/85=4600
