47Kohm 3950k NTC Epoxy Thermistor Temperature Sensor
Brief Introduction:
47Kohm 3950k NTC Epoxy Thermistor Temperature Sensor is manufactured by Hefei Jingpu Sensor Technology Co., Ltd. It’s composed of Copper clad steel lead wire, soldered NTC chip, and epoxy resin.
Features:
•Comply with RoHS standard
•miniature designed
•good interchangeable
•Operating temperature range: -40℃~125℃
• Low-cost, solid-state temperature sensor
•High sensitivity to changes in temperature
•Suitable for temperature measurement, control, and compensation
•Standard resistance tolerances down to±1%
R25=47KΩ
B25/50=3950k
Application:
• Home appliances such as refrigerator, dryer, HVAC, etc
• Automotive parts
• Medical equipment such as monitors and catheters
• Power tool

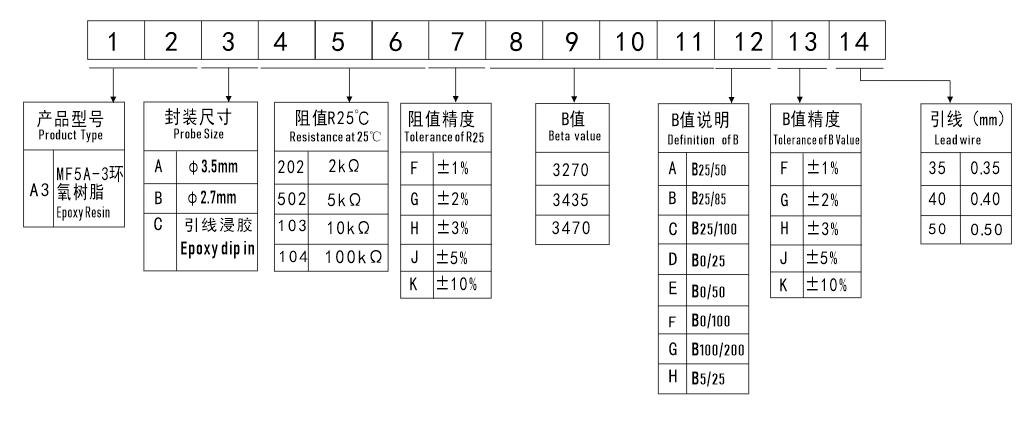

Part Number Code:
Structure and Dimensions:(unit: mm)
| NO. | Name | Material Specification | QTY. |
| 1 | Chip | NTC Thermal Chip | 1 |
| 2 | Encapsulation | Epoxy resin | 1 |
| 3 | Wire | CP Cable | 2 |
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length
L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -40℃~125℃ | 8~100 |
| 1.5 | B25/50=3850 |
| 1.5 | B25/50=3935 |
| 2 | B25/85=3550 |
| 2 | B25/85=3935 |
| 2.08 | B25/85=3580 |
| 2.2 | B25/50=3935 |
| 3 | B25/50=3950 |
| 5 | B25/50=3470 |
| 5 | B25/50=3950 |
| 8 | B25/100=3988 |
| 10 | B25/85=3435 |
| 10 | B25/50=3470 |
| 10 | B25/50=3935 |
| 10 | B25/50=3950 |
| 20 | B25/50=3950 |
| 47 | B25/50=3950 |
| 50 | B25/50=3950 |
| 50 | B25/50=4200 |
| 100 | B25/50=4200 |
| 200 | B25/50=4200 |
| 500 | B25/50=4450 |
| 1000 | B25/85=4600 |

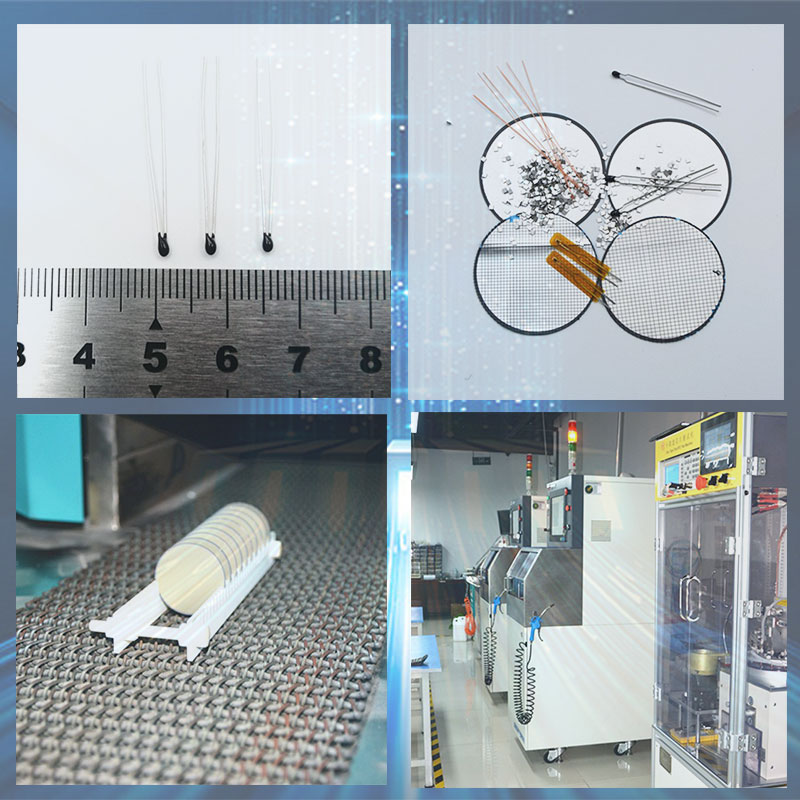

Product Display:

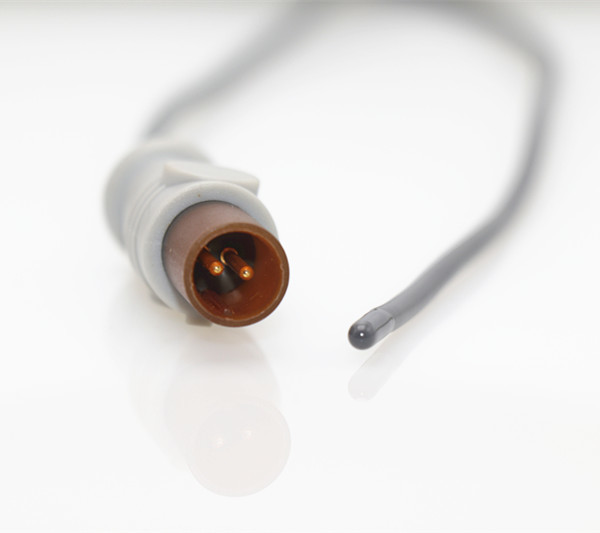

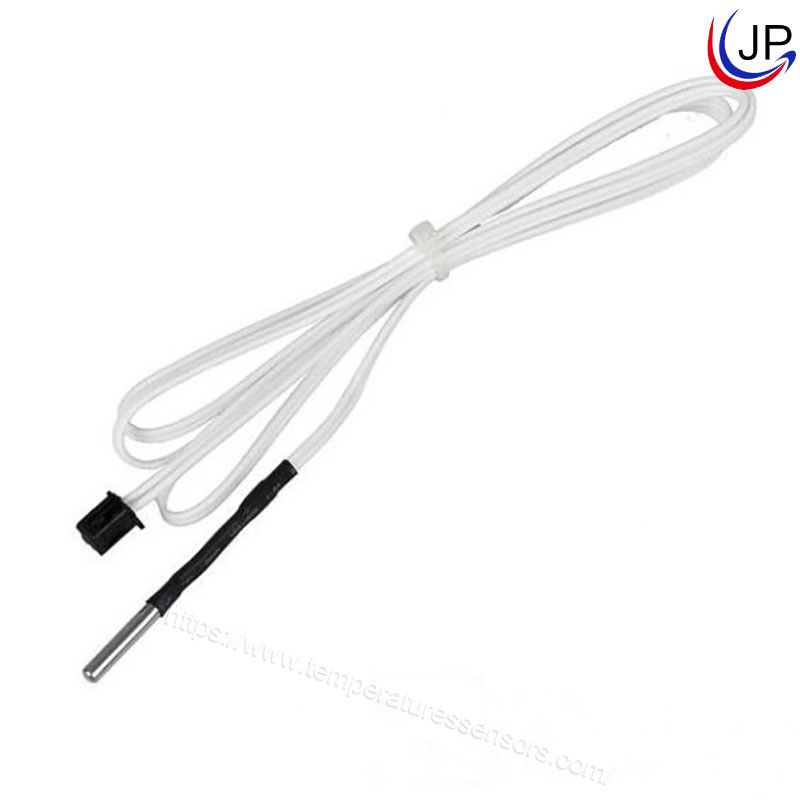

You may also like:
