Refrigerators Epoxy Resin NTC Probe Temperature Sensor

Name: Refrigerators Epoxy Resin NTC Probe Temperature Sensor
Brand: JP SENSOR
Price: 1 USD

Refrigerators Epoxy Resin NTC Probe Temperature Sensor Manufactures

Brand Name : JP SENSOR

Model Number : MFT

Certification : ISO9001, RoHS

Place of Origin : Anhui, China

MOQ : 1000 Pieces

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Million per Year

Delivery Time : 2 Weeks

Packaging Details : Standard Packing

Operating temperature range : -40℃~80℃

Chip : NTC chip

Probe : ABS probe(black)

Encapsulation : Epoxy resin(BLACK)

Cable : PVC cable

Customization : Available

Resistance : 5KΩ / 10kΩ

OEM/ODM : Available

Contact Now

Refrigerators Epoxy Resin NTC Probe Temperature Sensor

Product Description:

This item is an ABS probe NTC temperature sensor for refrigerators, of which the probe is a common used ABS Φ5*15mm shell in the market, the wire is a two-core sheath, the parameters are generally 5KΩ, 10kΩ, and the control temperature is about 0 °C.

Features:

Comply with RoHS standard

PVC insulated lead wires series Operating temperature range: -40℃~80℃

Stable performance

Accurate temperature measurement

Application:

refrigerators

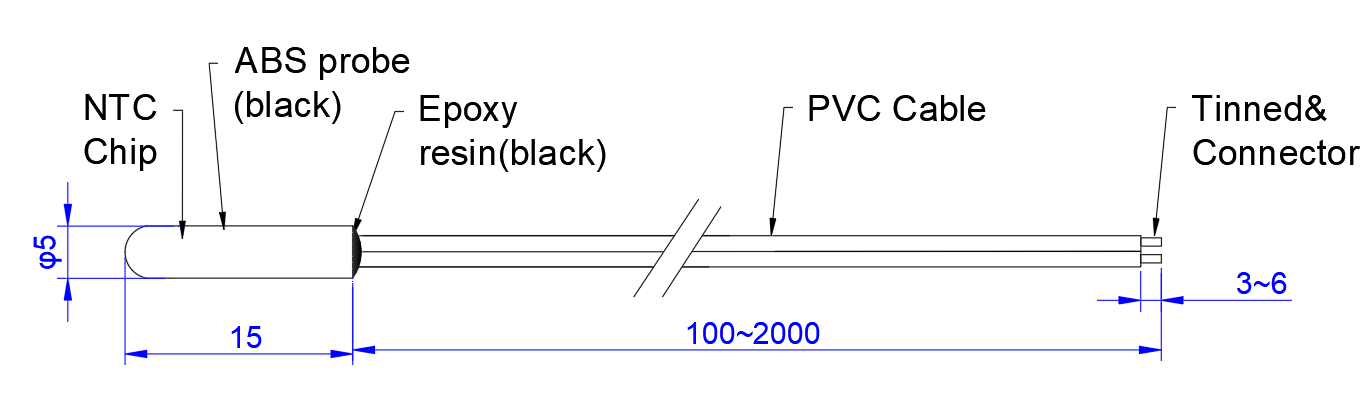

Structure and Dimensions(mm):

Refrigerators Epoxy Resin NTC Probe Temperature Sensor

Electrical Specification:

Rec. at 25℃(kΩ)+A2:G25+A2:G25	Beta value	(In air) Pmax(mW)	δ(mW/℃)	Thermal time constant τ(sec.)	Operating Temperature Range TL-TH(℃)	Total length L(mm)
1	B25/85=3435	Approx.60	/	/	-40℃~125℃	100~5000
1.5	B25/50=3850
1.5	B25/50=3935
2	B25/85=3550
2	B25/85=3935
2.08	B25/85=3580
2.2	B25/50=3935
3	B25/50=3950
5	B25/50=3470
5	B25/50=3950
8	B25/100=3988
10	B25/85=3435
10	B25/50=3470
10	B25/50=3935
10	B25/50=3950
20	B25/50=3950
47	B25/50=3950
50	B25/50=3950
50	B25/50=4200
100	B25/50=4200
200	B25/50=4200
500	B25/50=4450
1000	B25/85=4600

Other Product Images:

Product Tags:

Epoxy Resin Probe Temperature Sensor

Refrigerators Probe Temperature Sensor

NTC temperature probes
