Epoxy Resin NTC Probe Temperature Sensor For Home Appliances UL4413 26AWG Cable

  • 1
  • 2
  • 3

Brand Name : JP SENSOR

Model Number : MFP-3G

Certification : ISO9001, RoHS

Place of Origin : Anhui, China

MOQ : 1000 Pieces

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Million per Year

Delivery Time : 2 Weeks

Packaging Details : Standard Packing

Resistance Value : 50KΩ / 100KΩ

Beta Value : B25/50=3950K (Can be customized)

Probe : Stainless steel probe

Wire : UL4413 26AWG XLPE 150°C irradiated wire

Features : Comply for RoHS standard, Easy to install

ODM/OEM : Available

Customization : Supoport

Operating temperature range : -40℃ ~ 125℃

Contact Now

Fast Response UL4413 26AWG Cable Epoxy Resin NTC Temperature Sensor For Home Appliances

Product Description:

This product is generally used in electric kettles and other small home appliances. Its probe is stainless steel, the wire is UL4413 26AWG XLPE 150°C irradiated wire, and the resistance values are generally 50KΩ, 100KΩ, B25/50=3950K (can also be customized according to customers’ requirements), and it is epoxy resin encapsulated, the wire tail can be fabricated with corresponding connectors (PH-2Y) according to customers’ requirements.

Features:

Easy to install

Stainless steel probe

Comply with RoHS standard

Operating temperature range: -40℃~125℃

Application:

Electric water heater, electric kettle, and other small home appliances.

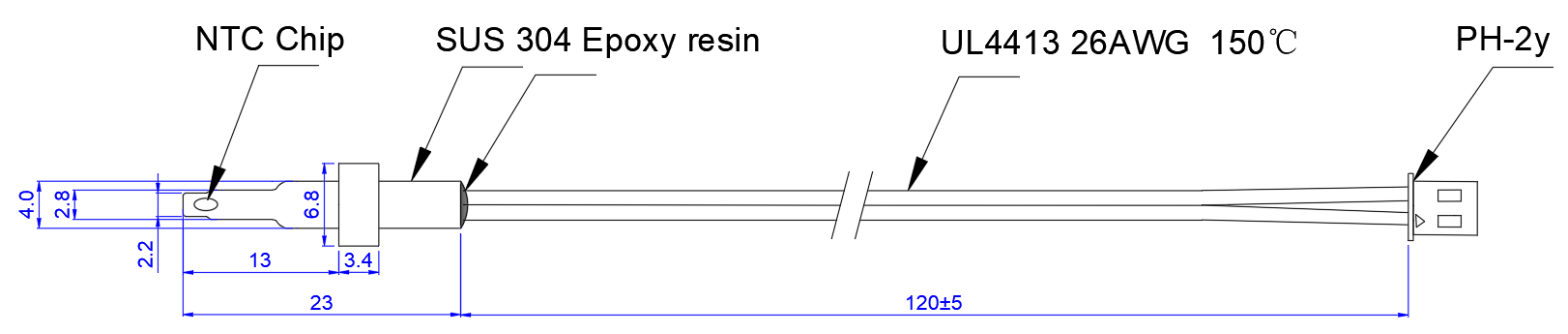

Structure and Dimensions:(unit: mm)

Epoxy Resin NTC Probe Temperature Sensor For Home Appliances UL4413 26AWG Cable

NO. Name Components QTY. Remarks
1 Chip NTC Chip 1 /
2 Probe SUS 304 Stainless Steel 1 /
3 Encapsulation Epoxy Resin 1 /
4 Wire UL4413 26AWG 150℃ 1 /
5 Connector PH-2y 1 /

Electrical Specification:

Rec. at 25℃(kΩ) Beta value (In air)Pmax(mW) δ(mW/℃) thermal time constant τ(sec.) Operating Temperature Range TL-TH(℃) Total length
L(mm)
1 B25/85=3435 Approx.60 / / -20℃~105℃(PVC wire)& -40℃~125℃(teflon or XLPE wire) 100~5000
1.5 B25/50=3850
1.5 B25/50=3935
2 B25/85=3550
2 B25/85=3935
2.08 B25/85=3580
2.2 B25/50=3935
3 B25/50=3950
5 B25/50=3470
5 B25/50=3950
8 B25/100=3988
10 B25/85=3435
10 B25/50=3470
10 B25/50=3935
10 B25/50=3950
20 B25/50=3950
47 B25/50=3950
50 B25/50=3950
50 B25/50=4200
100 B25/50=4200
200 B25/50=4200
500 B25/50=4450
1000 B25/85=4600
