R0 6.65K B0/25 3914K NTC Probe Temperature Sensor

  • 1
  • 2

Brand Name : JP SENSOR

Model Number : MFP-3G

Certification : ISO9001, RoHS

Place of Origin : Anhui, China

MOQ : 1000 Pieces

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Million per Year

Delivery Time : 2 Weeks

Packaging Details : Carton Package

R0 : 6.65KΩ

B0/25 : 3914K

Operating temperature range : -40℃~105℃

Application : AC of vehicle, evaporator

Probe : Aluminum probe

Cable : PVC 24AWG 105℃

Contact Now

R0 6.65K B0/25 3914K NTC Probe Temperature Sensor

Brief Instruction (Product Description):

This product is mainly used for temperature measurement of automobile air conditioners and evaporators. The product resistance parameters are generally R0℃=6.65KΩ, B0/25=3914K (can also be customized according to customer requirements), the probe is an aluminum shell, and the wire tail can be customized according to customer requirements with the corresponding connector.

Features:

Comply with RoHS standard

Operating temperature range: -40℃~105℃

Easy to install

Stable

Fast temperature measurement

Application:

AC of vehicle, evaporator

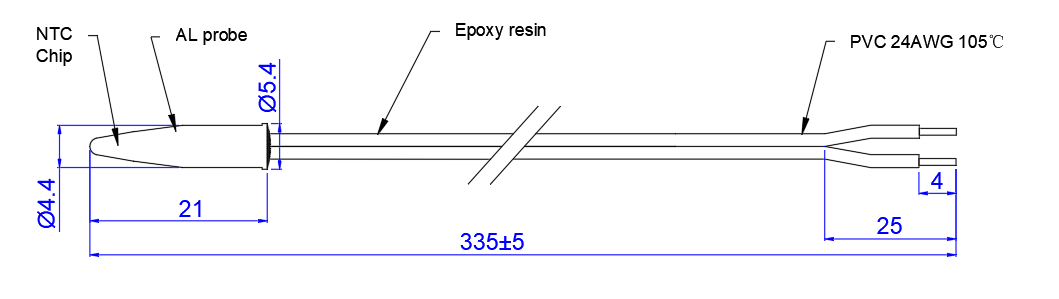

Structure and Dimensions:(unit: mm)

R0 6.65K B0/25 3914K NTC Probe Temperature Sensor

Electrical Specification:

Rec. at 25℃(kΩ)+A2:G25 Beta value (In air) Pmax(mW) δ(mW/℃) Thermal time constant τ(sec.) Operating Temperature Range TL-TH(℃) Total length
L(mm)
1 B25/85=3435 Approx.60 Max.3.0 Max.20 -40℃~125℃ 8~100
1.5 B25/50=3850
1.5 B25/50=3935
2 B25/85=3550
2 B25/85=3935
2.08 B25/85=3580
2.2 B25/50=3935
3 B25/50=3950
5 B25/50=3470
5 B25/50=3950
8 B25/100=3988
10 B25/85=3435
10 B25/50=3470
10 B25/50=3935
10 B25/50=3950
20 B25/50=3950
47 B25/50=3950
50 B25/50=3950
50 B25/50=4200
100 B25/50=4200
200 B25/50=4200
500 B25/50=4450
1000 B25/85=4600

Other Product Images:

R0 6.65K B0/25 3914K NTC Probe Temperature SensorR0 6.65K B0/25 3914K NTC Probe Temperature SensorR0 6.65K B0/25 3914K NTC Probe Temperature Sensor
