2500K To 4500K NTC Probe Temperature Sensor
Product Description:
MFE1 Epoxy Probe PVC XLPE Cable Probe Temperature Sensor is consist of the insulated wire (Teflon wire,PVC wire,XLPE insulated wire), NTC chip, and epoxy resin. The optional resistance value range is from 0.3kΩ to 2000kΩ, and the beta value range is from 2500K to 4500K.
Features:
Comply with RoHS standard
PVC insulated lead wires series Operating temperature range: -20℃~105℃
insulated lead wires series Operating temperature range: -40℃~150℃
Good stability and reliability
Easy to install and operate as the sealing can be done according to the environment
Accurate testing can reflect temperature change precisely.
Application:
Appliances, cars, equipment, etc

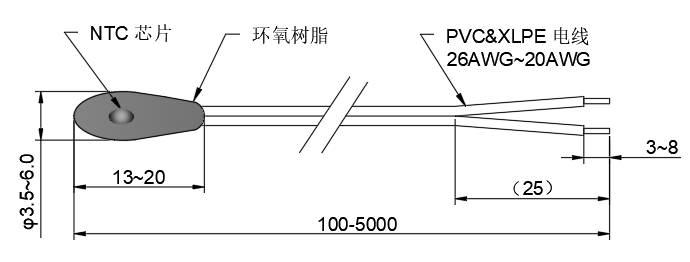

Structure and Dimensions:(unit: mm)
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Chip | 1 | / |
| 2 | Encapsulation | Epoxy resin | 1 | / |
| 3 | Wire | Cable 28AWG~22AWG/PVC&XLPE Cable 26AWG~20AWG | 2 | / |
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length
L(mm) |
| 1 | B25/85=3435 | Approx.60 | / | / | -20℃~105℃(PVC wire)& -40℃~125℃( or XLPE wire) | 100~5000 |
| 1.5 | B25/50=3850 |
| 1.5 | B25/50=3935 |
| 2 | B25/85=3550 |
| 2 | B25/85=3935 |
| 2.08 | B25/85=3580 |
| 2.2 | B25/50=3935 |
| 3 | B25/50=3950 |
| 5 | B25/50=3470 |
| 5 | B25/50=3950 |
| 8 | B25/100=3988 |
| 10 | B25/85=3435 |
| 10 | B25/50=3470 |
| 10 | B25/50=3935 |
| 10 | B25/50=3950 |
| 20 | B25/50=3950 |
| 47 | B25/50=3950 |
| 50 | B25/50=3950 |
| 50 | B25/50=4200 |
| 100 | B25/50=4200 |
| 200 | B25/50=4200 |
| 500 | B25/50=4450 |
| 1000 | B25/85=4600 |
