0.3k To 2000k Probe Temperature Sensor B Value 2500K To 4500K Thread Type Epoxy

  • 1
  • 2

Brand Name : JP SENSOR

Model Number : MFP-6B

Certification : ISO9001, RoHS

Place of Origin : Anhui, China

MOQ : 1000 Pieces

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Million per Year

Delivery Time : 2 Weeks

Packaging Details : Carton Packing

Operating temperature range : -20℃~105℃(PVC)

Chip : NTC Thermistor

Resistance : 0.3KΩ~ 2000KΩ

B Value : 2500k ~ 4500k

Application : Home appliances, commercial unit, automobile, etc

Customization : Yes

Contact Now

0.3k To 2000k Probe Temperature Sensor B Value 2500K To 4500K Thread Type Epoxy

Product Description:

It consists of the insulated wire ( wire,PVC wire,XLPE insulated wire), NTC chip, epoxy resin, and Nickel-plated copper M6 threaded probe. The optional resistance value range is from 0.3kΩ to 2000kΩ, and the beta value range is from 2500K to 4500K.

Features:

Comply with RoHS standard

insulated lead wires series Operating temperature range: -40℃~125℃

PVC insulated lead wires series Operating temperature range: -20℃~105℃

Easy to install and operate as the sealing can be done according to the environment

Application:

Home appliances, commercial units, automobiles, etc.

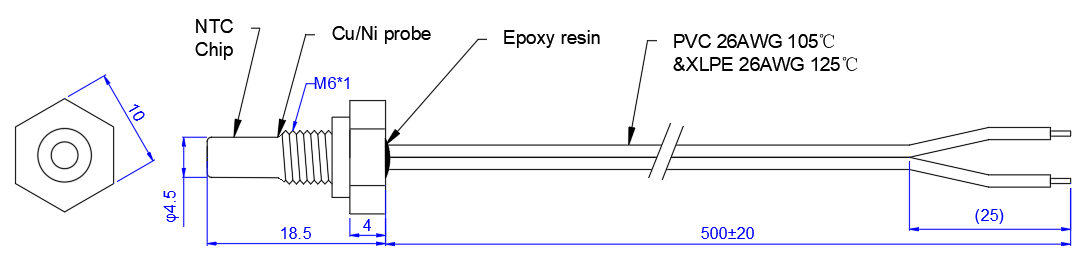

Structure and Dimensions:(unit: mm)

0.3k To 2000k Probe Temperature Sensor B Value 2500K To 4500K Thread Type Epoxy

Electrical Specification:

Rec. at 25℃(kΩ) Beta value (In air)Pmax(mW) δ(mW/℃) thermal time constant τ(sec.) Operating Temperature Range TL-TH(℃) Total length
L(mm)
1 B25/85=3435 Approx.60 / / -20℃~105℃(PVC wire)& -40℃~125℃( or XLPE wire) 100~5000
1.5 B25/50=3850
1.5 B25/50=3935
2 B25/85=3550
2 B25/85=3935
2.08 B25/85=3580
2.2 B25/50=3935
3 B25/50=3950
5 B25/50=3470
5 B25/50=3950
8 B25/100=3988
10 B25/85=3435
10 B25/50=3470
10 B25/50=3935
10 B25/50=3950
20 B25/50=3950
47 B25/50=3950
50 B25/50=3950
50 B25/50=4200
100 B25/50=4200
200 B25/50=4200
500 B25/50=4450
1000 B25/85=4600

Other Product Images:

0.3k To 2000k Probe Temperature Sensor B Value 2500K To 4500K Thread Type Epoxy0.3k To 2000k Probe Temperature Sensor B Value 2500K To 4500K Thread Type Epoxy0.3k To 2000k Probe Temperature Sensor B Value 2500K To 4500K Thread Type Epoxy
