Home Appliances Surface Mount Temperature Sensor Epoxy Resin Encapsulated NTC

Name: Home Appliances Surface Mount Temperature Sensor Epoxy Resin Encapsulated NTC
Brand: JP SENSOR
Price: 1 USD

Home Appliances Surface Mount Temperature Sensor Epoxy Resin Encapsulated NTC Manufactures

Brand Name : JP SENSOR

Model Number : MFP

Certification : ISO9001, RoHS

Place of Origin : Anhui, China

MOQ : 1000 Pieces

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Million per Year

Delivery Time : 2 Weeks

Packaging Details : Carton Packing

Chip : NTC Chip

Encapsulation : Epoxy resin encapsulated

Ring lug : M3.2

Operating temperature range : -40℃~125℃(/PTFE)

Application : Home appliances

Contact Now

Home Appliances Surface Mount Temperature Sensor Epoxy Resin Encapsulated NTC

Brief Introduction:

The surface mounting temperature sensor consists of the insulated wire ( cable & PVC cable, XLPE insulated wire), NTC chip and epoxy resin, and ring lug M3.2.

Features:

Comply with RoHS standard

miniature designed

Interchangeability

surface mount temperature measurement

PVC insulated lead wires series Operating temperature range: -20℃~105℃

(PTFE) insulated lead wires series Operating temperature range: -40℃~125℃

Application:

Home appliances, such as electric cooker

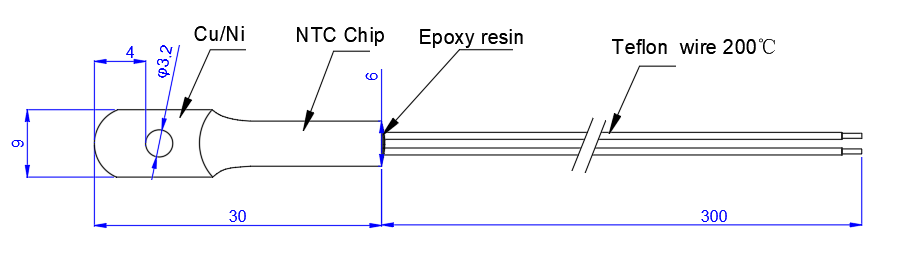

Structure and Dimensions(mm):

Home Appliances Surface Mount Temperature Sensor Epoxy Resin Encapsulated NTC

Electrical Specification:

Rec. at 25℃(kΩ)+A2:G25+A2:G25	Beta value	(In air)Pmax(mW)	δ(mW/℃)	thermal time constant τ(sec.)	Operating Temperature Range TL-TH(℃)	Total length L(mm)
1	B25/85=3435	Approx.60	Max.3.0	Max.20	-40℃~125℃	8~100
1.5	B25/50=3850
1.5	B25/50=3935
2	B25/85=3550
2	B25/85=3935
2.08	B25/85=3580
2.2	B25/50=3935
3	B25/50=3950
5	B25/50=3470
5	B25/50=3950
8	B25/100=3988
10	B25/85=3435
10	B25/50=3470
10	B25/50=3935
10	B25/50=3950
20	B25/50=3950
47	B25/50=3950
50	B25/50=3950
50	B25/50=4200
100	B25/50=4200
200	B25/50=4200
500	B25/50=4450
1000	B25/85=4600
