Surface Mount NTC Thermistor Temperature Sensor High Voltage Resistant

Name: Surface Mount NTC Thermistor Temperature Sensor High Voltage Resistant
Brand: JINGPU SENSOR
Price: 1 USD

Surface Mount NTC Thermistor Temperature Sensor High Voltage Resistant Manufactures

Brand Name : JINGPU SENSOR

Model Number : MFP

Certification : ISO9001, RoHS

Place of Origin : Anhui, China

MOQ : 500 Pieces

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Million per Year

Delivery Time : 2 Weeks

Packaging Details : Standard Packing

Probe : ABS Probe

Wire : wire

Operating temperature range : -20℃~80℃

Feature : Withstand AC 5000V high-voltage insulation

Customization : Available

ODM/OEM : Available

Contact Now

Surface Mount NTC Thermistor Temperature Sensor High Voltage Resistant

Product Description:

High voltage resistant surface mount NTC temperature sensor is widely used in electrical cabinets such as substation cabinets and high-voltage cabinets and can withstand AC 5000V high-voltage insulation.

Features:

Comply with RoHS standard

PVC insulated lead wires series Operating temperature range: -20℃~80℃

Simply assembly

high voltage resistant

Application:

Substation cabinets

High-voltage cabinets

electrical cabinets

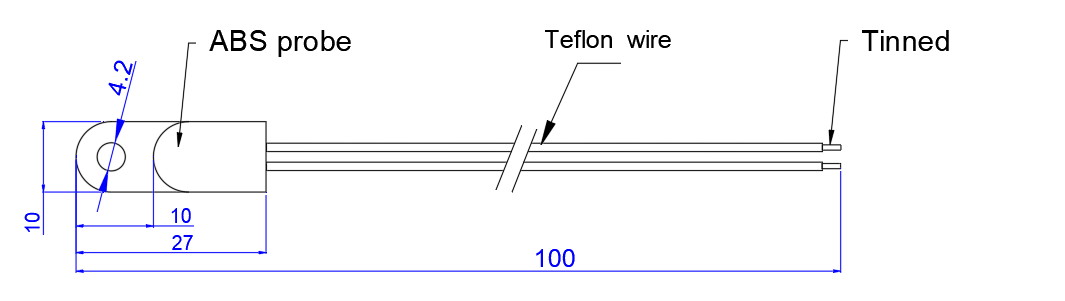

Structure and Dimensions:

Surface Mount NTC Thermistor Temperature Sensor High Voltage Resistant

Electrical Specification:

Rec. at 25℃(kΩ)+A2:G25+A2:G25	Beta value	(In air) Pmax(mW)	δ(mW/℃)	Thermal time constant τ(sec.)	Operating Temperature Range TL-TH(℃)	Total length L(mm)
1	B25/85=3435	Approx.60	/	/	-40℃~125℃	100~5000
1.5	B25/50=3850
1.5	B25/50=3935
2	B25/85=3550
2	B25/85=3935
2.08	B25/85=3580
2.2	B25/50=3935
3	B25/50=3950
5	B25/50=3470
5	B25/50=3950
8	B25/100=3988
10	B25/85=3435
10	B25/50=3470
10	B25/50=3935
10	B25/50=3950
20	B25/50=3950
47	B25/50=3950
50	B25/50=3950
50	B25/50=4200
100	B25/50=4200
200	B25/50=4200
500	B25/50=4450
1000	B25/85=4600
